    Submersible Stator Paper Inserting Machine 3.5KW Power For Large Electric Motor

    Ask Lasest Price
    Brand Name : Nide
    Model Number : CZDW2-300-300C
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 600 set per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Submersible Stator Paper Inserting Machine 3.5KW Power For Large Electric Motor

    This insulation paper inserting machine is used for stator slot paper insertion, it can do automatic paper feeding, edge folding and forming process. We specialize in motor manufacturing equipment, including stator manufacturing and armature manufacturing, and can customize machines to meet customer needs.


    (1) Application:

    The electric motor stator slot insulation paper inserting machine is suitable exclusively for large and medium-size electric motors, especially suitable for submersible motor, deep pump motor, generator, three phase machine, etc..

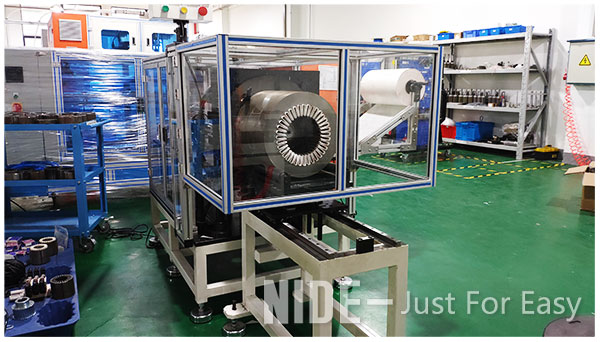

    Automatic submersible motor stator paper inserting machine for large electric motor manufacturing-1


    (2) Machine main function and characteristic

    Automatic paper feeding

    Auto edge folding and forming

    Adapt servo motor for indexing, paper feeding and paper pushing.

    Inserting insulation paper automatically from bottom of stator slot

    Interval slot inserting and skip slot inserting could be at option;

    Slot number change is controlled by electric;

    It is convenient and easy for different slot number stator production and changing tooling.


    (3) Main Technical Parameter:

    Product name:Automatic large electric motor stator slot paper inserting machine
    Stator height:80-300mm
    Stator OD:≤330mm
    Stator ID:φ70-φ250
    insulation paper's thickness:0.188~0.35mm
    Height of edge folded:2-4mm/4-7mm
    Slot No.:16~100slots is settable
    Tack time:1.2 S/slot
    Voltage:380V 50/60HZ
    Power:3.5KW
    Weight:600KG
    Dimension:1600*1420*1600mm

    (4)Picture show

    Automatic submersible motor stator paper inserting machine for large electric motor manufacturing-2

    Automatic submersible motor stator paper inserting machine for large electric motor manufacturing-3


    (5)The large stator slot paper inserting machine video
