    Stator Automatic Winding Machine With Three Nozzle Needle Winding Technology

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-SW05
    Certification : none
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 120 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Stator Automatic Winding Machine With Three Nozzle Needle Winding Technology

    HMI brushless dc electric motor stator automatic winding machine with Three Nozzle Needle winding technology


    (1) Main feature:

    1. The motor stator winding machine is designed with all movements necessary for winding over only one shaft and driven for only one servo motor, assuring the complete synchronism between vertical, radial and angular movement.

    2. Auto indexing, auto cutting, auto clamping, manually loading/unloading;

    3. The mechanical system has a continuous lubricating flow over all moving mechanisms.

    4. Three needles winders are disposed in sequence and making winding up to 700 rpm maximum.

    5. Slot no., turn no., indexing angle, rotation direction can be set inside HMI;

    6. The winders are equipped with wire tension control system.

    7. Machine diagnostic failure, Machine error will be displayed on HMI.

    8 .When wire is break/finished, machine will auto alarm and stop.


    (2) Main technical parameter:

    Product name:Three Nozzle BLDC brushless dc motor stator coil needle winding machine
    Wire diameter:0.09~1.1mm
    Stack height:15~80mm
    Stator O.D:60~150MM
    Stator I.D:>30mm
    Max speed/rated speed:700rpm(no-load)
    Air supply:0.4~0.7MPa
    Power supply:AC380V
    Input power:5.0KW
    Machine dimension:1000X1500X2100
    Machine weight:1100KG

    (3) Picture show:

    Brushless-DC-electric-motor-stator-automatic-winding-machine-needle-winder-1

    Brushless-DC-electric-motor-stator-automatic-winding-machine-needle-winder-2

    Brushless-DC-electric-motor-stator-automatic-winding-machine-needle-winder-3

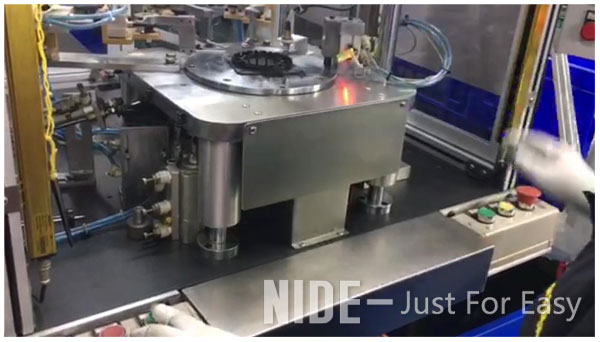

    (4) Three Nozzle Needle winding machine video:

    automatic stator winding machine for brushless dc motor
