    Semi automatic Fan Motor Stator Coil Forming Machine

    Automatic electric alternator motor fan motor stator coil forming machines for induction motor manufacturing


    (1) Main feature and introduction

    This motor stator coil forming machine is consisted of upper mould, lower mould, protective teeth, machine framework and electrical cabinet.

    The Middle forming machine main is powered by hydraulic system and controlled by PLC.

    Its inward expand and outward movable station is much convenient for big rotor stator.

    The stator coil forming is done by inner expansion, outer wrapping and overhanging pressing.

    This coil forming machine has advantages of mature and advanced technology, reliable quality, easy operation and maintenance.

    Production capacity ≤14s/set (exclude loading/unloading time)

    Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

    This machine adopts safety grating protection system.

    Operator need to stand when operating.


    (2) Application

    This motor stator coil forming machine is appropriate for micro induction motor like alternator motor, air conditioner motor, compressor motor, fan motor, washer motor, pump motor etc.


    (3) Technical data

    Product name:Automatic fan motor / alternator motor stator coil forming machine
    Stator IDΦ20~Φ100 mm
    Stator OD≤Φ160 mm
    Stack height≤190 mm
    Displacement of cylinder20 L
    Power380V/50Hz
    Dimension(L)1200×(W)800×(H)2300 mm
    Weight( tooling included)

    800 kg


    (4) Picture show

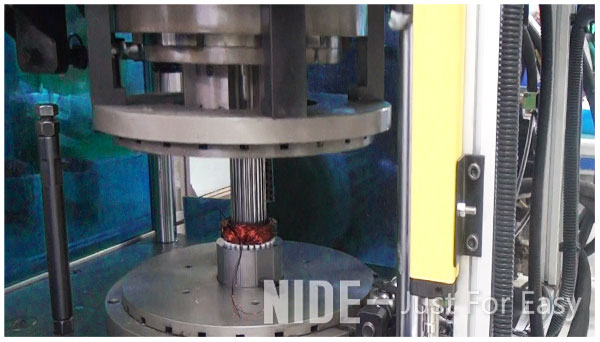

    Automatic fan motor stator coil forming machines-91

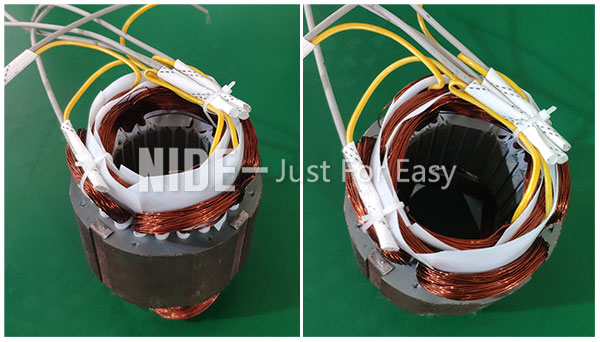

    Automatic fan motor stator coil forming machines-92


    (5) Machine operation steps

    1. After connected to the power source and air source, switch the button to on.

    2.Press hydraulic start button; switch to auto mode.

    3. Put stator into the tooling. Press “Start” button by two hands. Machine will auto form.


    (6)The motor stator coil forming machine video:
