    Servo Washing Needle Winding Machine 2 Winding Station PLC Control High Speed

    Servo washing machine inverter motor automatic winding machine,BLDC inner stator needle coil winder maker/manufacture


    (1) Introduction :

    The motor stator coil winding machine is aimed at Inverter brushless motor manufacturing, adopts double-station needle winding design technology, Mainly used for multi-pole stator winding. manual feeding, automatic clamping die, Multiple tap (screen setting), wire clamping and wire cutting can be realized during winding process. Each action cycle will wrap 2 stators, greatly improve the production efficiency, reduce labor intensity. The number of slots and cycles can be set by man-machine interface; Electric by PLC, display, servo motor control, set and display, safe and reliable.


    (2) Application:

    The automatic motor winding machine is especially suitable for Inverter washing machine motor, Inverter cleaner motor and other BLDC/brushless motor.


    (3) Function and Characteristics:

    1, For multi-pole BLDC motor stator winding, manual loading and unloading, automatic clamping, winding and shearing;

    2, The frame adopts thickened aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.

    3, Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.

    4, Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;

    5, Quick change-over of tooling;Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.

    6, PLC control, fault display

    7, Double stations high-speed needle winding


    (4)Specification:

    Product name:Double stations Inverter motor stator automatic winding machine
    Stator ID:φ25—φ60 mm (customizable)
    Stator OD:φ60—φ200 mm (customizable)
    Stack length:10-200mm(customizable)
    Wire diameter:φ0.13—φ1.2 mm(customizable)
    Spindle speeds:0-600 RPM adjustable
    Air pressure:0.5-1MPa
    Applicable pole number:multi polar
    winding technology:needle winding
    winding station:double two
    Voltage:380V/50HZ Three phase four wires
    Power:20KW
    Weight:700KG
    Dimension:1300*1100*1700mm

    (5)Picture show

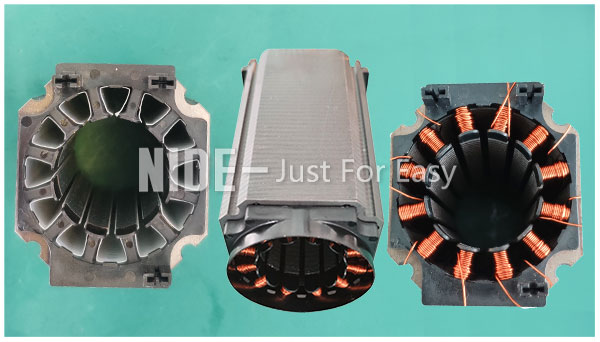

    Servo-BLDC-inverter-motor-automatic-winding-machine-inner-stator-needle-coil-winder-manufacturer-91

    Servo-BLDC-inverter-motor-automatic-winding-machine-inner-stator-needle-coil-winder-manufacturer-92

    Servo-BLDC-inverter-motor-automatic-winding-machine-inner-stator-needle-coil-winder-manufacturer-93
