    Fully Automatic Inverter Electric Motor Needel Winding machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-S4W01B
    Certification : none
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 800 sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Fully Automatic Inverter Electric Motor Needel Winding machine

    Fully automatic inverter motor stator needle coil winding machine from China electric motor machine manufacturer


    This fully automatic inverter motor stator winding machine has 4 winding stations , is used for electric BLDC inverter motor stator coil winding, high efficiency and Low cost are its characteristics.


    (1) Introduction:

    1. The motor stator winding machine adopts 4 stations design, it can wind four stators at the same time.

    2. Equipped with fully automatic flow conveyor, adopts an independent control system. It can automatic lifting, automatic position, and automatic stopping the stators.

    3. High efficiency and Low cost.

    4. All operating parameters can be set on the touch screen: the number of turns, the number of twist angles, and the steering are all programmable.

    5.The stator coil winder has a self-diagnostic function.


    (2) Application:

    This motor stator winding machine is suitable for BLDC brushless motors and inverter motors in the field of household appliances, such as inverter washing machines, inverter air conditioners, inverter refrigerators, inverter vacuum cleaners, inverter kitchen range hoods, etc.


    (3) Specification:

    Product name:Full Automatic Inverter Motor Stator Coil Winding Machine
    Wire Dia.:f0.13mm~f1.1mm
    Stator ID:Φ36mm~Φ60mm
    Stator OD:Φ70mm~Φ132mm
    Stator stack length:10mm~60mm
    Winding speed:50-700 r/min
    Winding method:needle winding
    Winding station:4
    Pole no:2,4,6,8
    Air pressure:0.5MPa~0.7 MPa
    Voltage:380V/50HZ ,Three-phase four-wire
    Power:26KW
    Dimension:2200mm*1260mm*2020mm
    Weight:1500KG

    (4)Picture show

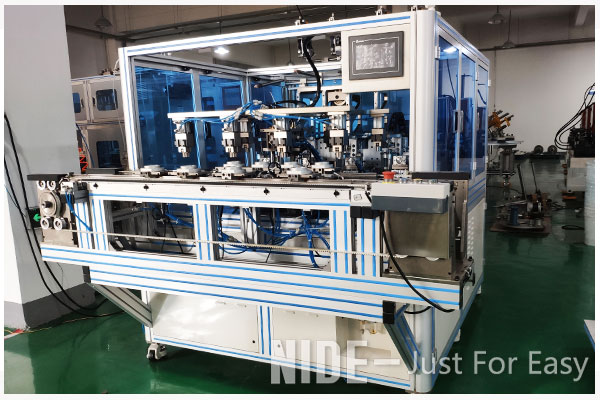

    Fully automatic inverter motor stator needle coil winding machine from China electric motor machine manufacturer-1

    Fully automatic inverter motor stator needle coil winding machine from China electric motor machine manufacturer-2

    Fully automatic inverter motor stator needle coil winding machine from China electric motor machine manufacturer-3
