    Durable Stator Winding Equipment BLDC Traction Motor Stator Coil Winding Equipment

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-RSW01A
    Certification : CE
    Price : Negotiable
    Payment Terms : TT/ LC
    Supply Ability : 500 sets per year
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    Durable Stator Winding Equipment BLDC Traction Motor Stator Coil Winding Equipment


    Automatic Elevator motor winding machine for BLDC Traction motor stator coil winding


    (1) Machine induction:
    This motor winding machine is designed for the Elevator motor stator coil winding. Equipped with the servo control system, able to diagnose the fault, count the output etc. Adopts needle winding technology, Greatly improved production efficiency. The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed, easy for operation and maintenance.


    (2) Application:
    The motor coil winding machine is suitable for Elevator traction motor stator and other BLDC external armature.


    (3) Function and Characteristics:
    1. The motor winding machine is suitable for multi-pole motor stator coil winding. Manual loading and unloading, automatic clamping, winding and shearing.
    2. Wire clamping and wire cutting, line part structure compact, wire clamping and wire cutting is completed at one time;
    3. PLC control, fault display ;
    4. The frame adopts thickened aluminum profile, and the table plate adopts cast iron to absorb vibration, even when winding at high speed, the vibration is very small.
    5. Different stator and winding parameters can be quickly switched through the HMI to adapt to different stator requirements.
    6. Quick change-over of tooling;
    7. Equipment safety index: accord with CE standard.
    8. Tooling and fixture parts adopt downward positioning mode, stable positioning and reliable tightening.
    9. The wire tightness is moderate, no injury, no breakage, etc.


    (4) Technical parameter:

    Product name:Automatic Elevator motor winding machine/BLDC needle winder
    Stator I.D.:20-80mm (Other specifications can be specially designed)
    Stator O.D.:50-120mm(Other specifications can be specially designed)
    Stator stack length:10-80mm(Standard stroke); 100-200mm(Long stroke, special customization)
    Wire dia.:0.5-1.5mm(Other specifications can be specially designed)
    Applicable pole number :multi polar
    Type:Automatic
    Motor winding method :Needle winding
    Winding stations :one
    Spindle speeds :0--300 RPM (adjustable)
    Voltage:380V/50HZ Three phase four wires
    Air pressure:0.5--1Mpa
    Power:20KW
    Dimension:1000*1200*2200mm
    Weight:

    800kg



    (5) Picture show

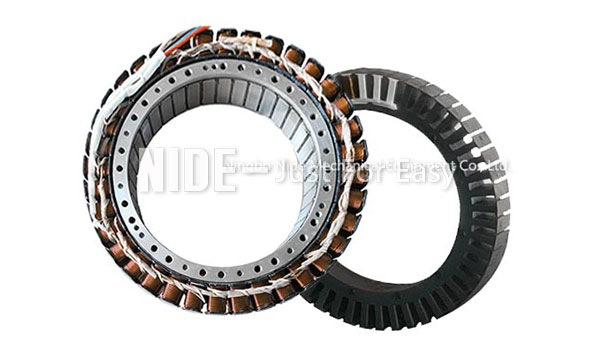

    Automatic-Elevator-motor-winding-machine stator coil winder-91

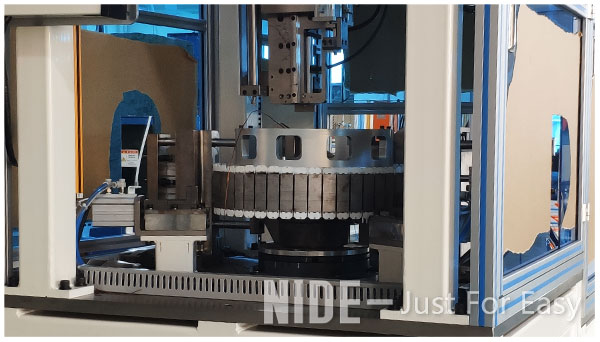

    Elevator-motor-automatic-winding-machine-92
    automatic motor winding machine BLDC stator needle winding machine
