    Stator Coil Winding Machine Middle Size Automatic Type Two Stations Structure

    Custmoized automatic electric motor stator coil winding Machine,Personlized motor manufacturing machine


    The automatic stator winding machine adopt vertical two stations structure,is used for for 2 poles, 4 poles and 6poles electric motor stator coils making.


    (1) Machine main function and characteristic

    The electric motor stator coil winding machine is a double-station automatic vertical winding machine, The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

    X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

    Each stator winding machine has one set winding tooling and three vertical winding forms.

    Able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.

    The whole set of tooling can be changed, and it takes about 15min.

    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

    And it is endowed with the display function of dynamic turns, actual turns, set turns, failure causes and position self-check.

    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

    Allow two wires winding simultaneously.

    The automatic stator winding Machine has no distinct vibration and noise.


    (2) Main technical data

    Product name:Automatic stator coil winding machine for electric motor
    Winding head:1pc
    Wire diameter:0.17~1.2mm
    Max stack OD:160mm
    Max stack height:100mm
    Winding speed:≤2000RPM
    Flier track:¢200mm
    Transfer number:2~6section
    Power supply:380V/50/60HZ 7KW
    Weight:about 1100kg
    Dimension:L1800*W1100*2200mm

    automatic coil winding machine


    (3) Picture show

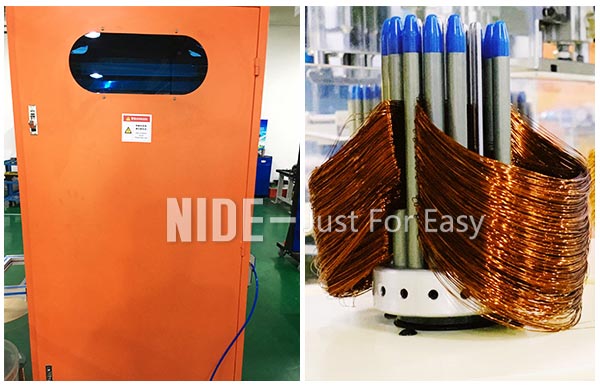

    The automatic coil winding machine

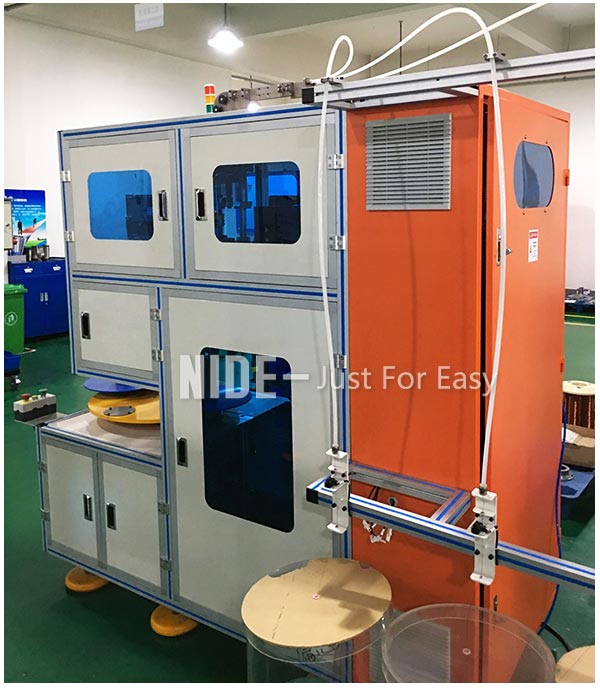

    automatic stator winding machineautomatic electric motor winding machine

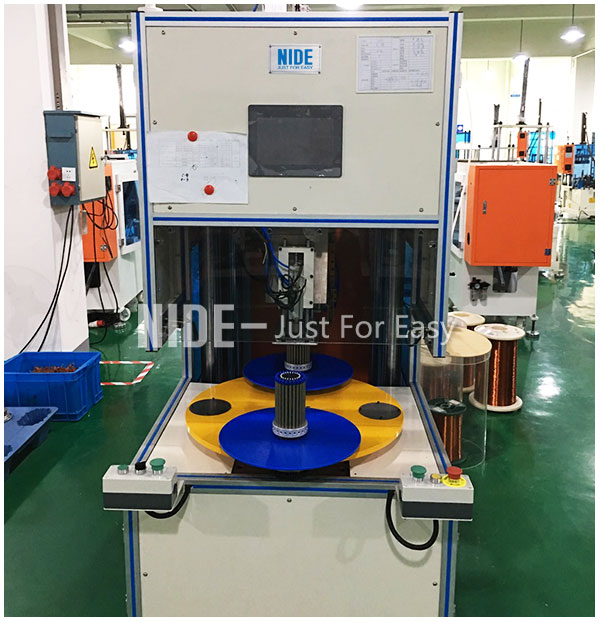

    automatic motor coil winding machine
