    DC Motor Two Stations Armature Testing Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-ATA-812
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

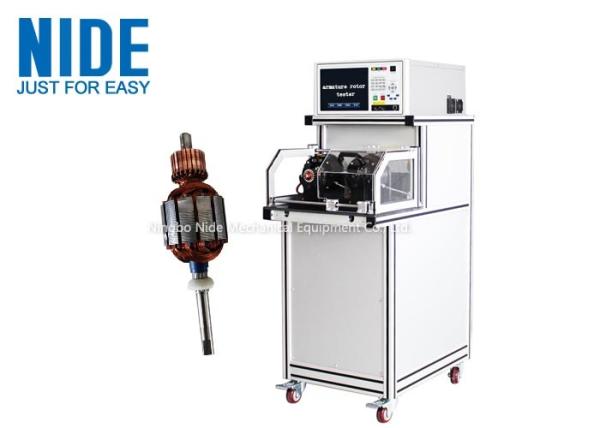

    DC Motor Two Stations Armature Testing Machine

    Automatic two stations Intelligent multi-function armature rotor testing machine for AC/DC motor generator manufacturing


    I. Test object: electric AC /DC motor armature rotor


    II. Test item and specification

    1. Test: Bar to bar resistance, welding resistance, insulation resistance(lamination to winding, shaft to lamination, shaft to winding), Hipot and surge

    2. Station: Double two stations

    3. Clamping mode: Place the tested rotor at the test station, and the system will clamp automatically.


    III. Technical parameters:

    commutator pics:5-128


    1.bar to bar resistance

    range0.5mΩ-500Ω
    precision≤±0.5%+3 digits

    2.welding resistance

    range1uΩ-10mΩ
    precision≤±10uΩ(bar resistance≤10Ω)

    3.insulation resistance

    voltage rangeDC 500V/1000V
    voltage precision≤±1.5% +3 digits
    test range0.1- 500MΩ
    test precision≤±2.5% +3 digits

    4.Hipot

    voltage range0-3000V/5000V , iron core and winding/shaft and winding/shaft and iron core single double insulation resistance
    voltage precision≤±2.5% +3 digits
    leakage current range0-5/10/20mA
    leakage current precision≤±2.5% +3 digits

    5.Surge

    voltage range0-3000V
    voltage precision≤±2.5% display value+2.5% , measuring+3 digits
    graph limits valuemin. difference0.1%(graph difference)
    impulse interval settingavailable
    sampling frequency20/40MHz (self-adjustable)

    IV. Picture



    Quality DC Motor Two Stations Armature Testing Machine for sale
