    Generator Motor 15Kw Stator Winding Machine

    Full Automatic Generator motor stator coil winding and inserting machine


    1. The main Features and Functions

    The full automatic generator motor stator coil winding and inserting machine is a four-station automatic coil winding and coil inserting machine,integrates the stator winding and embedding process, and the whole process is highly automated.

    The stator coil winding and insertion machine is mature in manufacturing process, advanced in technology, reliable in quality, and convenient to use and maintain.

    Designed as three winding stations and one coil inserting station, which collects A-phase winding, phase-to-phase insulation ferrule, groove-making, B-phase winding, phase-to-phase insulation ferrule, C Phase winding wire weaving, phase-to-phase insulation ferrule on one machine.

    The coil winding and inserting station is controlled by the dual-power servo motor, and the parameters such as winding, pushing the line, pushing the height of the paper, and changing the product stack thickness can be set on the touch screen.

    During winding, the coil will be auto wound to the tooling, so as to avoid the wire damage and snap caused by wire cross and disorder during manual wire transfer.

    With six stations wokring at the same time, the stator coil winding and inserting machine will be save labor cost, high efficiency, and can fulfill the 2-pole, 4-pole and 6-pole three-phase motor coil winding.

    The coil winding and inserting machine uses the German Beckhoff CNC system as the control center; the Huichuan servo motor is the actuator; the Autonics sensor is the signal acquisition component.

    The data display and input adopt a touch monitor.


    2. Technical parameters

    Product name :Fully automatic generator motor stator coil making and insertion machine
    Stator OD :≤φ150mm
    Stator ID :40-80mm
    Stack Height :30-80mm
    Appropriate Wire :φ0.2-φ1.2mm
    Winding stations :3
    Coil inserting stations :1
    Height of Coil :2
    Winding inserting mode :chained /same core
    Voltage :380V 50/60Hz
    Power :15Kw
    Dimension :(L)4050×(W)3000×(H)2500mm
    Weight :4500Kg

    Full automatic electric motor stator coil winding machine

    3. Application

    This motor stator coil winding and inserting machine is suitable for miniature induction motors , air conditioner motors, washing machine motors, compressor motors, fan motors, generator motors, and pump motors, etc.


    4. Picture show

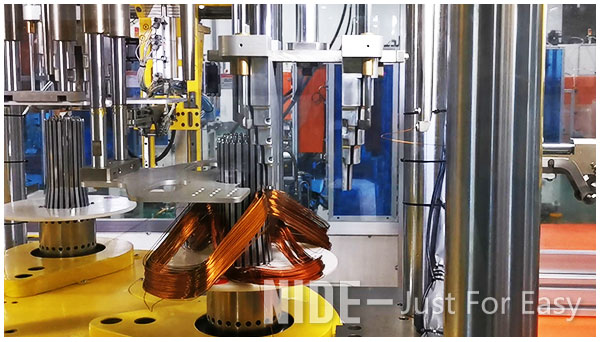

    automatic stator coil winding machine coil inserting machine

    Automatic genereator motor stator winding and inserting machine

    3 phase motor stator coil winding and insertion machine
