    Automatic wheel hub motor stator winding machine , electric scooter flyer coil winder

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NN-NL-RT4
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 180 sets per year
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Automatic wheel hub motor stator winding machine , electric scooter flyer coil winder

    Automatic wheel hub motor stator flyer winding machine for new energy vehicles motor manufacturing


    The wheel motor stator winding machine adopts flyer coil winding technology, is used for electric vehicles wheel hub motor manufacturing.


    (1). Main function:

    The wheel motor stator winding machine adopts air cylinder, PLC and touch screen control to realize the main functions of positioning, indexing, flying fork winding, motor cable winding, automatic front thread trimming and other functions. It can store hundreds of parameters and switch arbitrarily.


    (2). Technical Parameters


    Product name:Automatic wheel hub motor stator winding machine
    Dimension900X2100X1700 mm
    Weight:500Kg
    Air pressure:0.4-07Mpa
    Input voltage:220V
    Input power:5KW
    Winding method:flyer coil winding
    Winding station:1
    Color:white
    Processing range:Stator OD D200-D300mm(different OD needs to change different tooling)
    Stator stack:30-85mm (The tooling can be used for stacked stators within 5mm. If the random mold is designed for 30mm, it can be used to 35mm stators, If you make a stator of more than 35mm, you need to redo 2 pieces of guard plates, 2 sets of I-shaped blocks, spare parts)
    Wire dia:0.5-1.0mm
    Cycle time:winding 0.9X40 turns 54 slots 15 mins.
    Primary qualification rate≥98%(Stator stack thickness error is less than 0.2mm)

    (3). Application

    This wheel motor winding machine is suitable for electric vehicles, electric bicycles, electric motorcycles, electric balance vehicles, electric scooter, new energy vehicles, etc.


    (4). Picture show

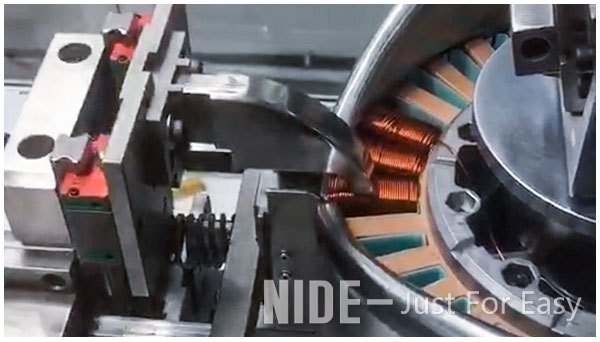

    wheel hub motor winding machine

    wheel motor stator winding machine

    Automatic electric motorcycles motor winding machine

    electric scotter wheel hub motor winding machine stator coil winder

    (5). The wheel hub motor stator winding machine video


    With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries .

    Customerized service1. Customized product design and manufacturing
    2. Customized tranning
    3.Technical suggestions
    After-sales service1. Warranty Period: 12 month usually
    2. Overseas service center available

    3. Engineers available to service overseas


    Automatic wheel hub motor stator winding machine , electric scooter flyer coil winder

    NIDE is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

    NIDE has three main business divisions.

    The first division is to provide different kinds of motor manufacturing machines, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

    The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover, etc.

    The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.
