    Induction Motor Stator Winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : RXL4-100D
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per year
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Induction Motor Stator Winding Machine

    Automatic 8 working stations stator coil winding machine


    Description:

    This automatic stator winding machine has four winding heads and eight operation stations. High efficiency is its feature. The machine automatically put the coil into transfer former orderly, especially suitable for high production capacity requirement, high slot filling rate, small slot opening stator coil winding. Winding mode, such as auto skip, auto cutting and auto indexing could be completed at a time successively, parameter could be set in human-machine interface. Continuous/discontinues winding way and meets the 2 poles. 4 poles, 6 poles coils winding.


    Competitive advantages:

    The stator winding machine is an eight-station coil winding machine suitable for all kinds of frame winding, electronic winding and combined motor winding.


    Technical Parameter:

    Wire diameter

    0.19~1.2mm

    Swing diameter

    220mm

    Operation station

    8

    Winding head

    4

    Max stack height

    100mm

    Max stator OD

    120m

    Max RPM

    2500RPM

    Air source

    ≥0.5MPa

    Power supply

    380V 50/60HZ 15KW

    Weight

    about 5000KG

    Dimension

    (L)2100*(W)1350*(H)2200mm


    Application:

    The stator winding machine is suitable Induction motor, stepper motor,such as fan motor, cooler motor, compressor motor, lawn mower motor, power tool motor,etc.


    Picture show:


    The automatic stator winding machine

    stator-winding-machine-91

    The stator coiling winder

    automatic stator-winding-machine-91

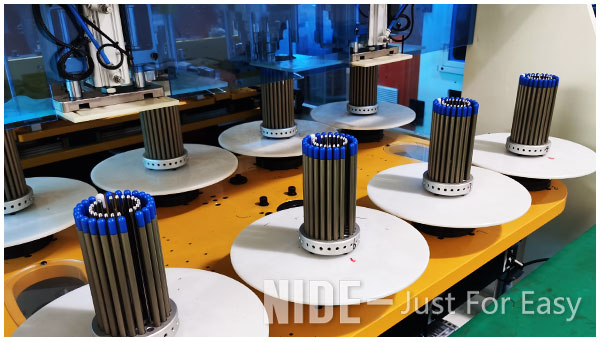

    The stator winding machine has 8 coil winding working stations.

    stator coil winding machine
