    24 Segments Traction Electric Motor Commutator For Flatbed Truck Dc Motor

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-HXQ-229
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    24 Segments Traction Electric Motor Commutator For Flatbed Truck Dc Motor

    24 Segments Traction Motor Commutator For Electric Flatbed Truck DC motor


    1. Motor Commutator description:

    Product name: Truck DC Traction motor commutator/ collector

    Brand: NIDE

    Materials :0.03% Or 0.08% Silver Copper,other could be customized

    Sizes: Customized

    Structure: Segmented/Hook/Groove Commutator

    MOQ: 10000Pcs

    Application: Truck DC motor

    Packing: Cartons on Pallets/Customized

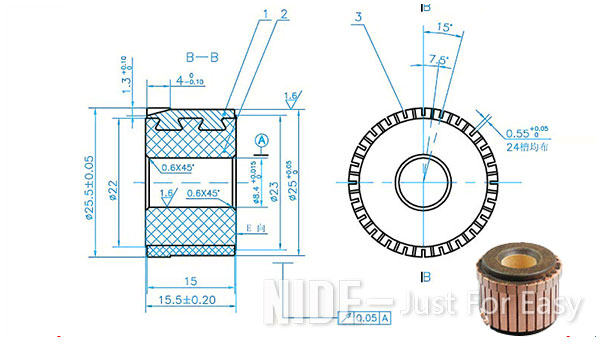

    24 segments commutator for electric motor.jpg

    2. Motor Commutator Main Specification:

    Model No.OD
    (mm)
    ID(mm)Total height
    (mm)
    Segment Length
    (mm)
    Hook/Riser dia.
    (mm)
    Bar No.
    S-0305132φ82018.538.220
    S-0305234φ10.528264925
    S-0305337φ15.726.522.55533
    S-0305418.8φ81413.523.512
    S-0305522.5φ1017.316.52910
    S-0305625.5φ10211826.424
    S-0305853.7φ224541.58029
    S-0305924.5φ10171529.524
    S-0306024.5φ10171529.512
    S-0306133.5φ1327.524.240.516
    S-0306233.5φ1327.524.240.532
    S-0306322.4φ916142712
    S-0306437.5φ132724.245.516
    S-03064A37.4φ16242144.532

    DC motor commutator collector.jpg

    3. Motor Commutator Application:

    Commutator for power tools armature

    Commutator for household appliances

    Commutator for starter motor armature

    Commutator for industrial motors

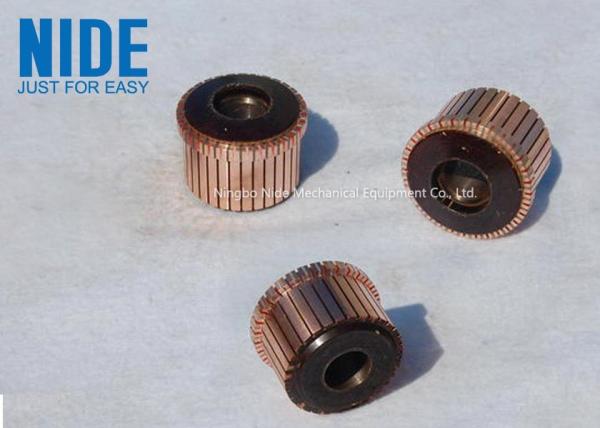

    4. Picture show:

    dc motor commutator collector.jpg

    DC Traction Motor collector.jpg

    Automobile DC Traction Motor collector.jpg

    5. Consultation preparation

    Please provide your commutator drawings or samples, We can design and manufacture commutators/ collectors according to the drawings or samples you offer. If have no existed mold, or we provide our drawing for your reference and modify together if you provide us detail measurements.


    Information needed for commutator inquiry:

    It will be better if customer could send us detailed drawing including below information.

    1. Commutator dimension: OD, ID, total height, and copper height, bar number.

    2. Commutator type: hook type, raiser type or planner

    3. Copper material: Agcu/ Cu

    4. Commutator applications

    5. Required quantity

    6. Copper bush needed or not

    7. Other technical requirement.

    If possible, it will better if customer could send us samples.


    Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

    motor electric commutator


    About Motor component and accessories

    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
