    automatic bldc motor linear stator rolling up machine,stator coil roll-up mechanical

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-STW01
    Certification : CE
    Price : negotibale
    Payment Terms : L/C, T/T
    Supply Ability : 150 sets per year
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    automatic bldc motor linear stator rolling up machine,stator coil roll-up mechanical

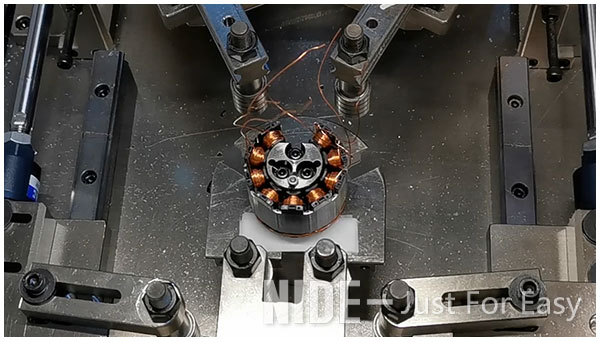

    Automatic BLDC motor linear stator rolling up machine for segmented stator core roll-up

    The linear stator rolling up process video:


    The automtaic stator rolling up machine is Linear type stator core rolling machine. The linear stator rolling up process is after the stator coil winding process. The rolling up machine has rolling unit, servo positioning unit. Adopt PLC control, equipped with HMI. It is sitable for BLDC motor segmented stator manufacturing.


    Features:

    Easy operation, automatic rolling;

    Easy change for stack height;

    Safety operation;

    BLDC motor linear stator rolling up machine.jpg

    Main parameter:

    Product name:Linear stator automtaic rolling up machine
    Machine dimension:1200*800*1600mm(LxWxH)
    Power supply:200V-240V 50HZ
    Low voltage:24V DC
    Air pressure:0.5-0.8MP
    Power:800W
    Machine weight:500KG
    Working mode:Manual/Auto

    Picture show:

    BLDC motor linear stator roll-up machine.jpg

    BLDC motor linear segmented stator rolling up machine.jpg

    Automatic motor linear stator rolling up machine.jpg
