    Energy Vehicle Motor Stator 0.25mm Paper Inserting Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-RSI01A
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per year
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Energy Vehicle Motor Stator 0.25mm Paper Inserting Machine


    Energy Vehicle Motor Stator Paper Inserting Machine for Wheel hub Motor manufacturing


    New energy vehicle wheel hub motor stator slot insulation paper inserting machine


    This wheel hub motor stator slot paper inserting machine can be used for new energy automobile motor stator insulation paper inserting. The equipment is simple to operate and automatically runs. It only needs to manually take the hub stator. NIDE not only provides new energy electric automobile hub motor stator paper inserting machine, but also Series of hub motor manufacturing solutions, including hub motor stator winding machine, hub motor stator wedge inserting machine, hub motor stator spot welding machine, motor stator testing machine, etc.

    The following is the introduction of the new energy electric vehicle hub motor stator slot insulation paper inserting machine


    (1) Equipment functions and features

    This stator paper insertion machine is specially designed for wheel hub motor stator insulating paper inserting.

    It adopts servo working system which dramatically improve the paper inserting efficiency.

    99% pass rate for one insertion of paper, 100% pass rate after repair

    The number of stator slots, paper feeding speed, indexing speed, indexing direction and other functions can be set through the man-machine interface.

    The working frequency can be continuously variable.

    The stator has no phenomenon such as warping or deformation caused by paper insertion.

    The whole machine has no obvious vibration and noise.


    (2) Equipment parameters:

    Product name:New energy vehicles motor stator paper insertion machine
    Wheel hub Stator Outer Diameter:80~200mm
    Wheel hub Stator Stack thickness:18~35mm
    Number of stations:single station
    Insulation paper thickness:0.188~0.35mm
    Color:Customized
    Power supply:220V 50/60HZ 1.0KW
    Dimensions:500x550x1500mm
    Weight:350KG

    (3) Application scope

    This motor stator slot insulation paper insertion machine is suitable for wheel hub motor stator insulation paper inserting, such as electric bicycle motors, electric tricycle motors, electric motorcycles, electric scooter motors, electric balance bike motors, new energy vehicle motors, GO-Kart motor, Brushless DC hub motor, etc.


    (4) Picture display

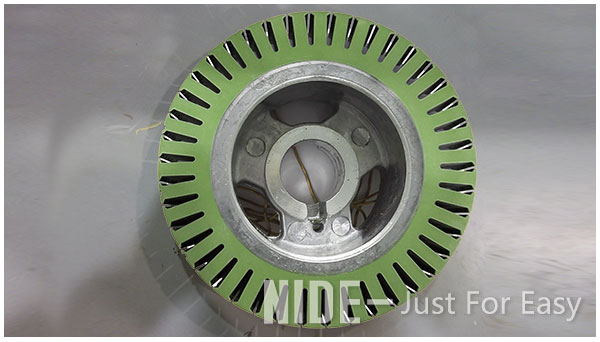

    New energy vehicles motor stator paper inserting machine.jpg

    New energy vehicles motor stator slot paper insertion machine.jpg

    (4) The wheel hub motor stator paper insertion machine video https://youtu.be/pD9xofafa5k


    Besides paper inserting machine, we also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    electrical insulation meterial motor winding insulation paper
