    Vertical BLDC Motor Stator Paper Inserting Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-SSI01D
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 set per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Vertical BLDC Motor Stator Paper Inserting Machine

    automatic vertical motor stator paper inserting machine for brushless dc motor making


    (1) Machine function and characteristic:

    This stator slot paper inserting machine is designed for electric motor inner stator insulation paper insertion,and suitable for servo motor, brushless DC motor and stepping motor stator. This paper insertion machine is easy to operate, Low noise and Highly automated. It adopts mechanical driven system, servo system and pneumatic system. As a result, the machine can automatically do positioning, pressing, paper feeding, paper forming, paper pushing. The paper edge can be auto chamfered so as to solve the winding problem caused by paper, and improve the percent of pass of stator.


    (2) Technical parameter:

    Product name:Automatic motor inner stator slot paper inserting machine
    Stack height:20mm ~ 60mm
    Stator I.D:50~ 150mm(can be customized if special)
    Insulation paper width:10mm ~ 55mm(can becustomized if special)
    Insulation paper thickness:0.188mm ~ 0.3mm
    Slot No.:Odd(more than 8 slots)
    Cycle time:11pcs/pc
    Notching dimension:0-3x45
    Air pressure:0.4~0.8MPa
    Power supply:220V AC 50/60Hz
    Power:7KW
    Weight:600Kg
    Dimension:1600mm X 700mmX 1780mm

    (3) Application:

    The stator paper inserting mahcine is suitable for servo motor, BLDC motor and stepping motor stator, is used for motor stator insulation protection.


    (4) Picture show:

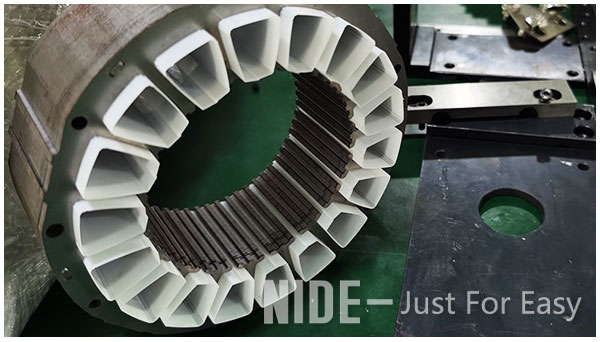

    stator insulation paper inserting machine

    stator slot paper inserting machine.jpg

    stator slot paper inserting machine.jpg

    The auto Bldc stator paper insertion machine video
