    Hoverboard Wheel Motor 2 Station Stator Winding Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : ND-R2SW01C
    Certification : CE
    Price : Negotiable
    Payment Terms : TT/ LC
    Supply Ability : 800 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Hoverboard Wheel Motor 2 Station Stator Winding Machine

    Automatic Hoverboard Wheel Motor Stator Winding machine for Smart balance Electric Scooter Segway


    The Hoverboard Wheel Motor stator winding machine is suitable for 2 wheels Smart Self Balancing Electric Scooter motor . The Hoverboard Wheel Motor is a three-phase AC, permanent-magnet brushless motor.In a system that requires high power, AC motors are more efficient. AC motors also have more control over their start-up torque than DC motors, making the hoverboards just slightly less terrifying.


    (1) Introduction and Features

    The Hoverboard Wheel Motor stator winding machine equips with the servo control system.

    it is designed for Smart balance Electric Scooter wheel motor coil winding.

    It could diagnose the fault, count the output, etc.

    The other function such as auto winding, multi-diameter wires winding, auto indexing, auto skip slot and winding speed could be programmed.

    The Hoverboard Wheel Motor winding machine adopts double stations winding design.

    It has high production efficiency and reduced labor costs.

    The Hoverboard Wheel Motor stator winding machine has remote diagnostics function.

    It is easy to operate and maintain .


    (2) Application

    This Hoverboard wheel motor winding machine is used for the wheel hub motor stator coil winding, such as Electric Scooter, electric vehicles, battery cars, electric motorcycles, Self Balancing cars, new energy vehicles, etc.


    (3) Technical parameter:

    Product name:Automatic Hoverboard wheel motor stator winding machine
    Wheel motor Stator ID :10~100mm
    Wheel motor Stator O.D :80-310mm
    Wheel motor Stator stack lenght :10-50mm
    Wire dia :0.2~1.3mm
    Max. winding speed :500RPM
    Winding station:2
    Parallel winding wire number :1~8
    Voltage :three pahse 380V 50HZ , single pahse 220V 50HZ
    Air pressure :0.4-0.7 MPA
    Total power :<7KW
    Weight :about 750KG
    Dimension :1100x1000x1700mm

    (4) Picture show:

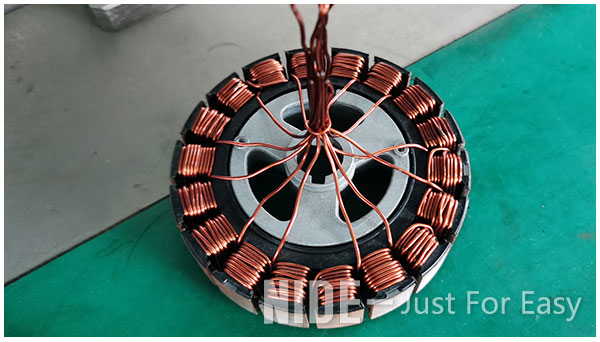

    Hoverboard wheel Motor Stator Winding machine.jpg

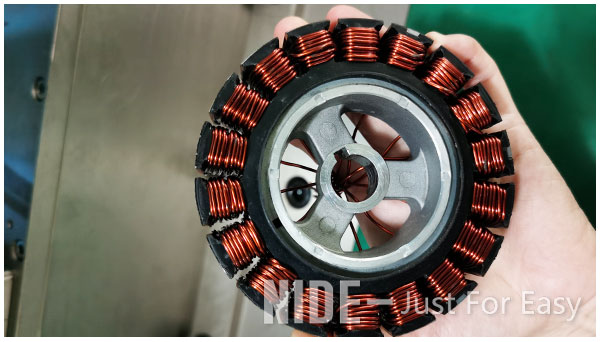

    Scooter Hoverboard wheel Motor Stator Winding machine.jpg

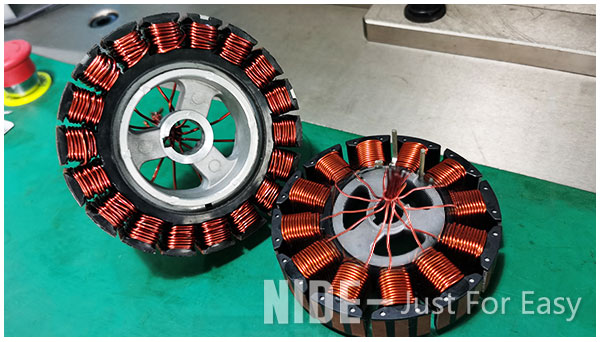

    Scooter Hoverboard wheel Motor Winding machine.jpg

    automatic scooter wheel motor winding machine

    The Hoverboard wheel motor stator winding machine video https://youtu.be/lyO92w45O4w
