    Washing Machine Motor Stator 0.75kw Paper Inserting Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : CZDL2-160-190B
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 800 sets per year
    Delivery Time : 50 working days
    • Product Details
    • Company Profile

    Washing Machine Motor Stator 0.75kw Paper Inserting Machine

    Automatic Washing Machine Motor Stator paper inserting machine


    The automatic slot paper inserting machine is suitable for washing machine motor stator insulation paper insertion, it comprises the components of: a frame, a slot paper plate, a slot paper edge-folding mechanism arranged on the frame, a material feeding mechanism, a forming mechanism and a stator clamp mechanism.


    (1)Advantage

    The automatic stator insulation paper inserting machine is advantageous in that: 1) simple structure and low product cost are realized, and market competitiveness is improved; and 2) the unique notch conversion mechanism can make the one-time automatic paper inserting machine possess a function of machining motor stators with different slot shapes in one time, thereby improving operation efficiency, simplifying operation flow and reducing production cost.


    (2) Technical data:

    Product name:Automatic electric motor stator insulation paper insertion
    Insulation paper thickness:0.188~0.35mm
    Stator OD:max 135mm
    Stator ID:20~90mm
    Stator stack length:20~90mm
    Folding height/width:2~4mm/4~7mm
    Efficiency:about 0.5s/s
    Power:380V/50/60HZ 0.75KW
    Machine dimension:(L)1250*(W)700*(H)1100mm
    Machine weight:about 220kg

    (3) Feature

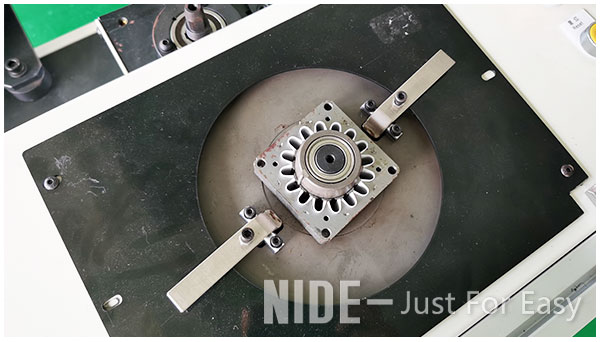

    The automatic stator slot paper inserting machine is characterized in that: the forming mechanism comprises a forming slot, a material pushing blade and a cutter. The material pushing blade pushes the slot paper to the forming slot and cuts off the slot paper. A notch conversion block is arranged above the forming slot. The conversion block is provided with two or more shaping slots according to the stator slot shape. Under driving of a converter, the notch conversion block selects a corresponding shaping slot according to the size of the stator slot shape for connecting with the forming slot in a butt-jointing manner. A conical material guiding slot which has a smaller upper part and a larger lower part for transition connection is arranged between the shaping slot and the forming slot.


    (4) Application

    This Stator slot paper Inserting Machine is suitable for induction motor, AC motor , three phase motor, gasoline generator, washing machine motor, Vacuum cleaner motor, etc.


    (5) Picture show

    stator slot paper inserting machine.jpg

    stator insulation paper inserting machine.jpg

    stator paper insertion machine.jpg


    Besides paper inserting machine, We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.


    electric motor components
