    Automatic Linear Segmented Stator Needle Winding Machine

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : ND-SLR01B
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 800 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    Automatic Linear Segmented Stator Needle Winding Machine

    Linear Segmented Stator Needle Winding Machine For Open Slot Stator


    This automatic needle winding machine is winding machine for segmented Stator Structure. It is used to wind coils for segmented stators, open slot stators, linear stators, straight stators, especially stators with narrow slot but high slot filling rate. 3 needle coil winding heads greatly improve machine efficiency and production cycle. It can wind single-strand or multi-strand copper wire. Those machines generally named as linear winding machine where either segment or winding tool is rotated to wind the wire. The Stator Winding Machine can do automatic winding, shifting, trimming, arraying. Fast winding speed and high production.


    The linear stator segmented stator needle winding process video


    (1) Specification (The following parameters can be customized)

    Product nameAutomatic linear open slot stator needle winding machine
    Wire range0.5-1.3mm
    Stator OD60-260mm
    Stack length6-50mm
    Stator weightMax 3KG
    Winding speed500-3000 R.P.M
    Working station3 needle winding heads
    Air pressure0.5~0.7MPa
    Total power5KW
    Air source0.4~0.7 MPa
    Power supplyAC 380±10, 50/60HZ
    Dimension1100x 1300x2000mm
    Weight800KG

    (2) Application

    The linear stator needle winding machine is suitable for various kinds of open slot stators with high slot filling rate.


    (3) Features

    Friendly designed operator's interface

    3 needle coil winding heads.

    High efficiency and production

    Precise servo drive control of the wire feeding

    High quality level of the winding process

    Provide customized service


    (4) Picture show

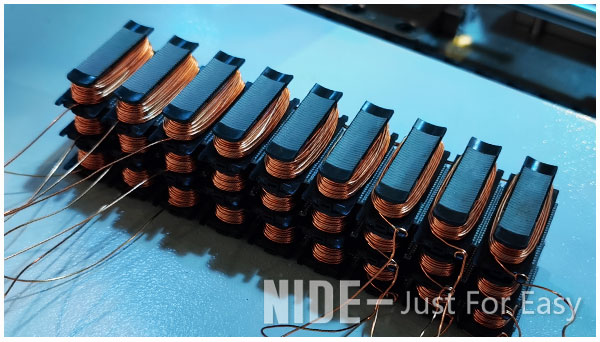

    Linear Stator Needle Winding Machine.jpg

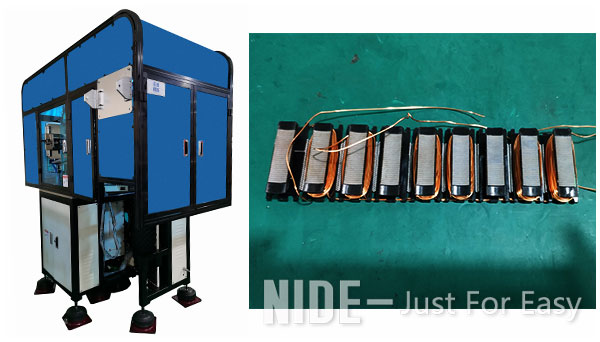

    Linear Segmented Stator Needle Winding Machine.jpg
