12 segmented automobile wiper motor hook commutator

This motor commutator is a hook type commutator with reliable installation, which has the advantages of reliable installation and reliable operation.

This hook commutator is suitable for automotive glass wiper motors. It includes a shaped filler matrix. The center hole of the shaped filler matrix is embedded with a copper bushing. The copper bushing has a central mounting hole. The commutator segments are evenly spaced on the outer circumference of the shaped filler matrix. The commutator segments include the commutator segment body, The fixed foot fixed in the embedded molding filler matrix and the hook formed by the reverse bending of one end. The two axial ends of the copper bush are equipped with warping locking pieces, and one end of the warping locking piece extends into the central mounting hole , And warp along the axial direction at the opposite end of the hook, the corresponding copper bushing is formed with a hollow hole at the position of the warping locking piece, and a circle of warping at equal intervals is provided at both ends of the copper bushing. Curved locking piece.

Product Description:

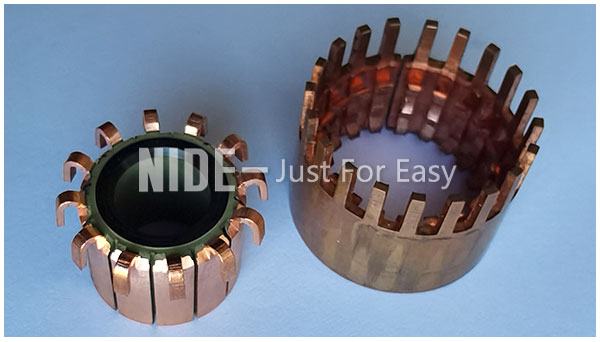

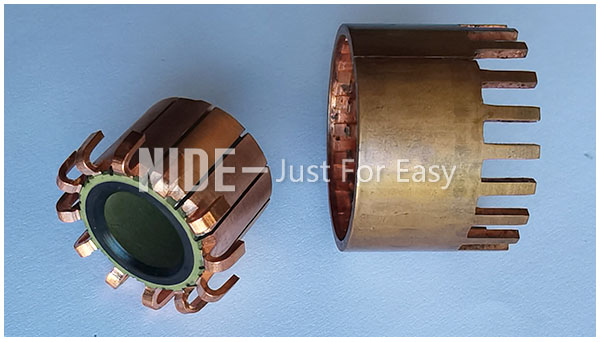

Picture show

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

About Motor component and accessories

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

Ningbo Nide Tech Co., Ltd, adhering to the customer-centric concept, focuses on the stator, rotor and complete assembly of various motors, and provides customers with one-stop solutions for highly automated, intelligent and flexible production.

The company was established in 2010 and has 4 subsidiaries: Zhejiang Nide Automation Tech Co., Ltd., Jiangsu Nide Automation Tech Co., Ltd., Ningbo Nide International Co., Ltd.，Ningbo Lingfeng Danuo Property Service Co., Ltd. and 3 international affiliated company: NIDE India PVT, NIDE USA LLC，NIDE Wintech SRL.

After years of development, NIDE has gradually accumulated a certain influence and brand effect at home and abroad. At present, the products cover the professional manufacture of new energy motor stator and rotor, hairpin motor, automatic aluminum casting rotor line, brushless motor/ BLDC motor, universal motor, wheel hub motor, etc., which are used in new energy vehicles, household appliances, industrial motors, water pump motors, servo motors, etc. The company integrates R&D, production and sales, and wholeheartedly serves customers at home and abroad, aiming delivering value and achieving a win-win situation.

Focus on providing one-stop solution to motor manufacturing.

Three business divisions:

1. Motor manufacturing machines.

2. Motor components.

3. Technical consulting and turn-key service.

The Core business is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers’ confidence gradually. We directly and indirectly supply our products to more than 50 countries. Among the customers, many of them are the world-renown companies.
