    Induction Motor Tubular Stator Coil Lacing Machine

    Ask Lasest Price
    Brand Name : Nide
    Model Number : BXSIIL4-160-160D
    Certification : None
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50 set per month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Induction Motor Tubular Stator Coil Lacing Machine

    Induction motor tubular stator coil lacing machine line for Automatic garage door motor

    This motor stator coil lacing machine is suitable for induction motor tubular stators manufacturing. It adopts a four-station wire binding station design. After the stator coil lacing, the tying line is heated at high temperature. It is highly automated, improves production efficiency and reduces labor costs. With the development of society, electric rolling shutter doors with electric take-off and landing have been widely used in indoors, warehouses, garages, stores, etc. The field has gradually widened. Therefore, how to improve the overall performance of the tubular motor, such as starting torque and power, while ensuring the thin and light appearance of the tubular motor, has become a problem faced by the tubular motor industry. The induction motors produced by our tubular motor manufacturing equipment can increase the power of tubular motors without changing the industry standards of tubular motors. Among them, this stator making machine is suitable for the stator coil lacing process of induction motors, and the height of the stator can be adjusted according to customer needs.

    Induction motor tubular stator coil lacing machine.jpg

    Parameter

    Product name:4 stations induction motor stator coil lacing machine
    Stator OD:φ40-φ160mm, can be customized
    Stator ID:≤100mm, can be customized
    Stack Height:30-160mm, can be customized
    Height of Coil:≤65mm, can be customized
    Working stations:4
    Pitch time:≤14s/pc (24 slots)
    Air Pressure:0.4-0.6MPa
    Power supply:380V 50/60Hz 6Kw
    Weight:≈1500Kg
    Dimension:(L)2000×(W)1100×(H)1900mm

    Picture show

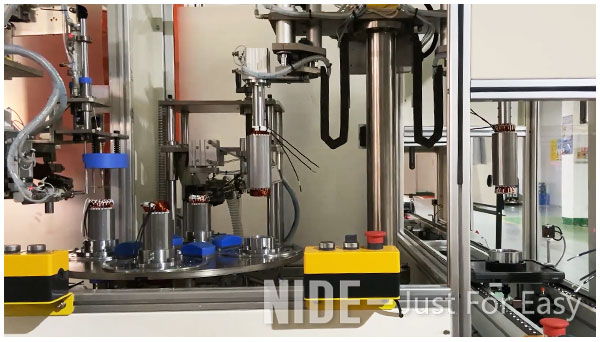

    The automatic motor stator coil lacing machine has 4 stations


    stator coil lacing machine.jpg

    The stator coil automatic lacing

    stator coil binding machine.jpg

    The stator line automatic hot melt

    stator wire lacing machine.jpg

     tubular stator coil lacing machine.jpg
