    Block Rectangular Neodymium Magnets N52 N42 For Instruments And Motor

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-CW-58
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Block Rectangular Neodymium Magnets N52 N42 For Instruments And Motor

    N52 Strong Magnetic Materials Rectangular Neodymium Magnets Block NdFeB Rare Earth Magnet


    NdFeB Magnet

    NdFeB permanent magnets are developing rapidly and widely used due to their excellent performance, abundant raw materials and reasonable prices. Most block magnets have their north and south pole on the two largest areas. The few exceptions, which are magnetized in longitudinal direction, are specifically marked.These block magnets, like our other super magnets, are made of a special NdFeB alloy, which allows neodymium block magnets to achieve extreme adhesive force of up to 200 kg. It is mainly used in micro and special motors, permanent magnet instruments, electronics industry, automobile industry, petrochemical industry, nuclear magnetic resonance equipment, audio equipment, magnetic levitation system, magnetic transmission mechanism and magnetic therapy equipment. The surface usually needs to be electroplated, such as galvanized, nickel, silver, gold, etc., can also be phosphated or sprayed with epoxy resin to extend the service life and make it more beautiful.


    NdFeB Magnet Specification

    Product nameNdFeB Rare Earth Strong Neodymium Magnet
    MaterialSintered Neodymium-Iron-Boron ( NdFeB )
    SizeCustomized
    ShapeCustomized (block,Disc,Cylinder, Bar, Ring,Arc,Countersunk, Segment, hook)
    NdFeb magnet Plating/Coating:Nickel, Zinc, Ni-Cu-Ni, Epoxy, Rubber, Gold, Sliver, etc.
    NdFeb magnet GradeCustomized (N33 N35 N38 N40 N42 N45 N48 N50 N52)
    Size tolerance :Routine ±0.1mm and strict ±0.05mm
    Density:customized

    Performance Grade

    Grade & working TemperatureGradeMax. Operating Temperatures
    N35-N4580°C(176°F)
    N48-N5260°C(160°F)
    35M- 50M100°C(212°F)
    33H-48H120°C(248°F)
    33SH-45SH150°C(302°F)
    30UH-40UH180°C(356°F)
    28EH-38EH200°C(392°F)
    28AH-33AH220°C(428°F)

    NdFeB Magnet Applications

    Neodymium(NdFeB) Magnet are widely used in many fields, such as voice coil motor(VCM), step motor, textile synchronous motor, geared motor, disc motors, servo motors, permanent magnet moving coil device, headphones, sensors, microphones, wind turbines, wind generators, printer, switchboard, packing box , loudspeakers, electric meter, speed meter, flowmeter, tachometer, magnetic separation, magnetic hooks, magnetic holder, magnetic chuck, magnetic clamp, magnetic crane, magnetic filter, CD_ROM, oil degreasing equipment, magnetic coupling, magnetic switch.ect.

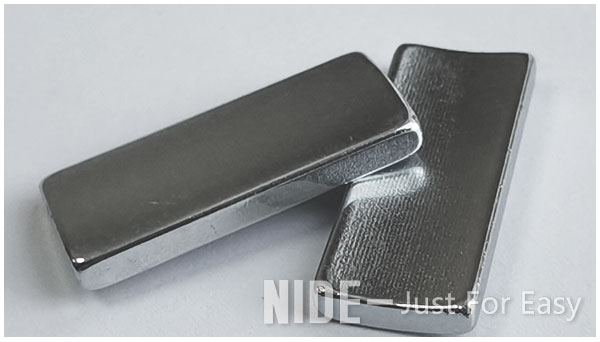

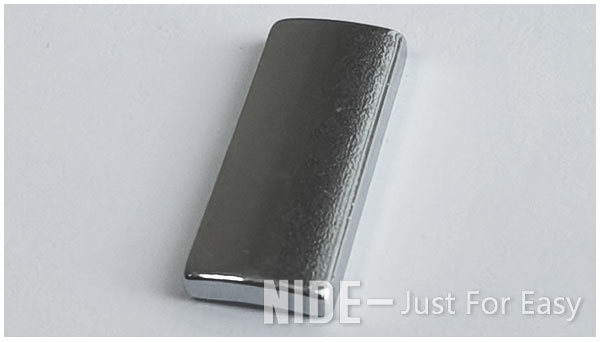

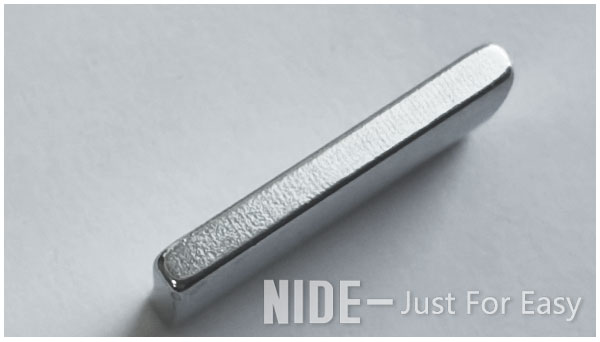

    NdFeB Magnet Picture Show


    N52-Strong-Rectangular-Neodymium-Magnets-96.jpg.jpgNeodymium-Magnets-96.jpg.jpgRectangular-N52-Strong-Neodymium-Magnets-96.jpg.jpg

    Information needed for magnet inquiry

    It will be better if customer could send us detailed drawing including below information.

    1. Magnet drawing

    2. Magnet material

    2. Magnet dimension: width, thickness, tolerance.

    3. Magnet grade

    4. Magnet applications

    5. Required quantity: normally its weight or quantity

    6. Other technical requirement.

    If you are not sure which grade is proper, please contact our engineer. We can also customize according to your needs


    NIDE can offer a variety of motor magnets, please contact us if necessary.
