    6630/6641 Dmd Motor Insulation Paper 0.1-0.45mm

    6630/6641 DMD Motor insulation material paper 0.1-0.45mm


    6641 F grade DMD polyester film polyester fiber non-woven soft composite material is made of polyester fiber non-woven fabric and polyester film. The three-layer composite material bonded by F grade resin has a temperature resistance rating of 155°C. It is mainly used for slot insulation, turn-to-turn insulation, gasket insulation, transformer insulation of Y2 series motors or other low-voltage motors. It can also be used for F-class electrical coil insulation.


    Available specifications: 0.15, 0.17, 0.20, 0.25, 0.30, 0.35, 0.38mm

    The main technical indicators take 0.25 as an example

    Thickness tolerance: 0.04±0.05

    Tensile strength longitudinal without bending ≥150 after bending ≥130

    (N/10mm) Horizontal without bending≥130 After bending≥120

    Elongation% Longitudinal ≥10 Transverse ≥10

    Volume resistivity under normal conditions MΩ.m ≥1.0×10.6, after damp ≥1.0×10.4

    Breakdown voltage Normal state≥10.0 155±2℃≥9.0

    Thermal adhesion: no delamination, no foam, flow glue 180±2℃


    NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.


    Product parameter

    Product nameF 6641/6630 DMD motor insulation paper
    Model:6641F grade DMD insulation paper
    Grade:F grade
    Color:blue/green/red
    Thickness:0.1~0.5 (mm)
    Width:1030 (mm)
    Size:1000 (mm)
    Thickness:0.45 (mm)
    Features:Good insulation performance, high temperature and high pressure resistance
    Heat resistance:130-180 degrees
    Custom:Yes
    Packing description:carton

    Product Usage

    1. Motor product industry: automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors, power tool motors, slot insulation, slot wedge insulation, phase insulation, insulating gaskets .

    2. Electronic and electrical industry: ballasts, LED power supplies, transformers, filters, transformers, inter-turn gasket insulation.

    3. Wire and cable industry: cable wrapping insulation tape.

    The company has slitting, stamping forming, and testing equipment to ensure the quality of various insulating forming materials.


    6641 F DMD Technical Data:

    ItemUnitParameter
    Material thicknessmm0.130.150.180.200.23
    Thickness deviationmm±0.02±0.02±0.02±0.02±0.02
    Quantitative and deviationg/m2130±13150±15185±19215±22255±26
    membrane thicknessmm0.0360.050.0750.100.125

    Tensile Strength


    Vertical


    Horizontal

    N/10mm


    N/10mm

    ≥60


    ≥40

    ≥90


    ≥80

    ≥120


    ≥105

    ≥140


    ≥120


    ≥180


    ≥150

    Elongation


    Vertical


    Horizontal

    ≥15


    ≥20

    ≥15


    ≥20

    ≥15


    ≥20

    ≥15


    ≥20

    ≥15


    ≥20

    Breakdown voltage


    Not bend

    KV≥5≥7≥8≥10≥11
    Normal cohesivenessNo stratification
    Thermal adhesion180±2℃10minNo layering, no foaming, no glue flow
    Heat resistance gradeClass F 155 degrees
    ColourBlue/Green/Red

    Picture show

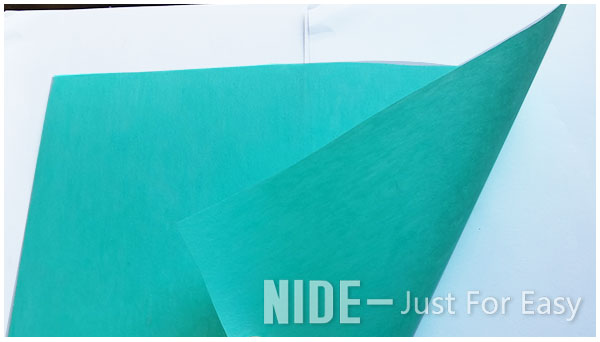

    insulation paper .jpg

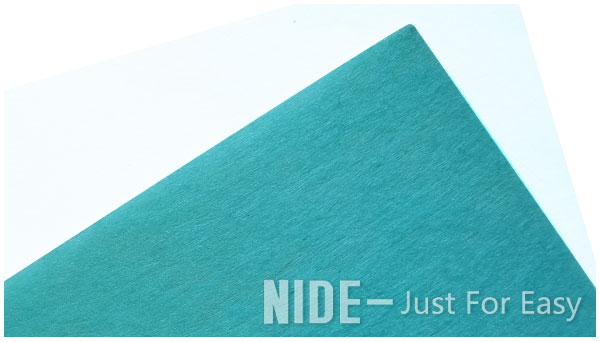

    motor insulation paper .jpg

    insulation wedge.jpg

    motor insulation paper material.jpg


    Information needed for insulation material inquiry
    It will be better if customer could send us detailed drawing including below information.
    a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
    b. Insulation material dimension: width, thickness, tolerance.
    c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
    d. Insulation material applications
    e. Required quantity: normally its weight
    f. Other technical requirement.


    We also supply different types of electrical insulation materials for stator or armatures, such as insulation paper and insulation wedge with different class degree. DMD Class B/F, DM Class B/F, Polyester film Class E, Red Vulcanized Fiber Class A, NH& NHN, etc

    insulation-paper-material-for-motor-winding-manufacturing


    electrical insulation paper material


    About Motor component and accessories


    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
