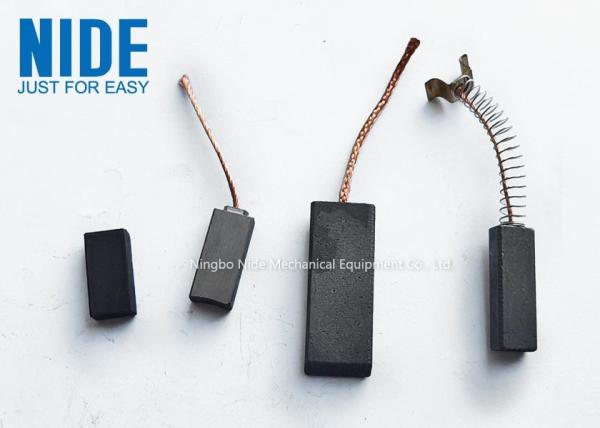

Our graphite carbon brushes are mainly widely used in electrical motor equipment. They are used to transmit signals or energy to the fixed and rotating parts of some motors or generators. The shape is rectangular, and the metal wire is installed in the spring. The carbon brush is A kind of sliding contact, so it is easy to wear and needs to be replaced and cleaned regularly.

Carbon brushes play a very important role in DC motors. Carbon brushes conduct current between the moving parts of the motor. This conduction is a sliding conduction that can transfer current from the fixed end to the rotating part of the generator or motor. A carbon frame is composed of several carbon brushes, so this conduction method also causes the carbon brushes to be easily worn out, and the carbon brushes also change the direction of current, that is, the effect of commutation.

Carbon brushes are also used in AC equipment. The shape and material of the carbon brushes of AC motors are the same as those of DC motors. In AC motors, there are wound rotors and variable speeds are needed. Carbon brushes are needed, such as our commonly used hand drills and polishing. The machine also needs to change the carbon brush frequently, and its function is also very important.

The main component of a carbon brush is carbon, and it works on a rotating part like a brush when it is pressed by a spring, so it is called a carbon brush. The main material is graphite.

Graphite is a natural element, its main component is carbon, the color is black, it is opaque, has a semi-metallic luster, is not high in hardness, and can be pulled with a nail. The composition of graphite and diamond is carbon, but the properties are very different. This is due to the different arrangement of carbon atoms.

Although graphite is composed of carbon, it is a high temperature resistant material, and its melting point reaches 3652°C. With this high temperature resistant feature, graphite can be processed into a high temperature resistant chemical utensil crucible.

The conductivity of graphite is very good, more than many metals, hundreds of times that of non-metals, so it is made into conductive parts such as electrodes and carbon brushes.

The internal structure of graphite determines its good lubricity.

Technical requirement

​

Picture show

Information needed for carbon brush inquiry:
It will be better if customer could send us detailed drawing including below information.
1. Carbon brush dimension: length, width, height, lead wire length
2. Carbon brush material:
3. Carbon brush voltage and current requirement.
4. Carbon brush applications
5. Required quantity
6. Other technical requirement.

We have a wide range of carbon brush. Our carbon brush has a wide application, such as automotive industry, household appliances, hammers, planers and etc. We directly supply our carbon brushes to many countries. We could customize carbon brush for our customer.

Ningbo Nide Tech Co., Ltd, adhering to the customer-centric concept, focuses on the stator, rotor and complete assembly of various motors, and provides customers with one-stop solutions for highly automated, intelligent and flexible production.

The company was established in 2010 and has 4 subsidiaries: Zhejiang Nide Automation Tech Co., Ltd., Jiangsu Nide Automation Tech Co., Ltd., Ningbo Nide International Co., Ltd.，Ningbo Lingfeng Danuo Property Service Co., Ltd. and 3 international affiliated company: NIDE India PVT, NIDE USA LLC，NIDE Wintech SRL.

After years of development, NIDE has gradually accumulated a certain influence and brand effect at home and abroad. At present, the products cover the professional manufacture of new energy motor stator and rotor, hairpin motor, automatic aluminum casting rotor line, brushless motor/ BLDC motor, universal motor, wheel hub motor, etc., which are used in new energy vehicles, household appliances, industrial motors, water pump motors, servo motors, etc. The company integrates R&D, production and sales, and wholeheartedly serves customers at home and abroad, aiming delivering value and achieving a win-win situation.

Focus on providing one-stop solution to motor manufacturing.

Three business divisions:

1. Motor manufacturing machines.

2. Motor components.

3. Technical consulting and turn-key service.

The Core business is to provide different kinds of motor manufacturing machinery, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.

The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers’ confidence gradually. We directly and indirectly supply our products to more than 50 countries. Among the customers, many of them are the world-renown companies.
